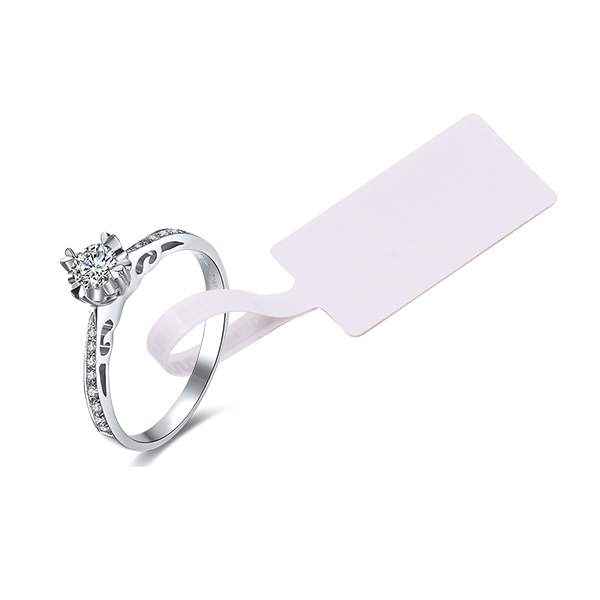

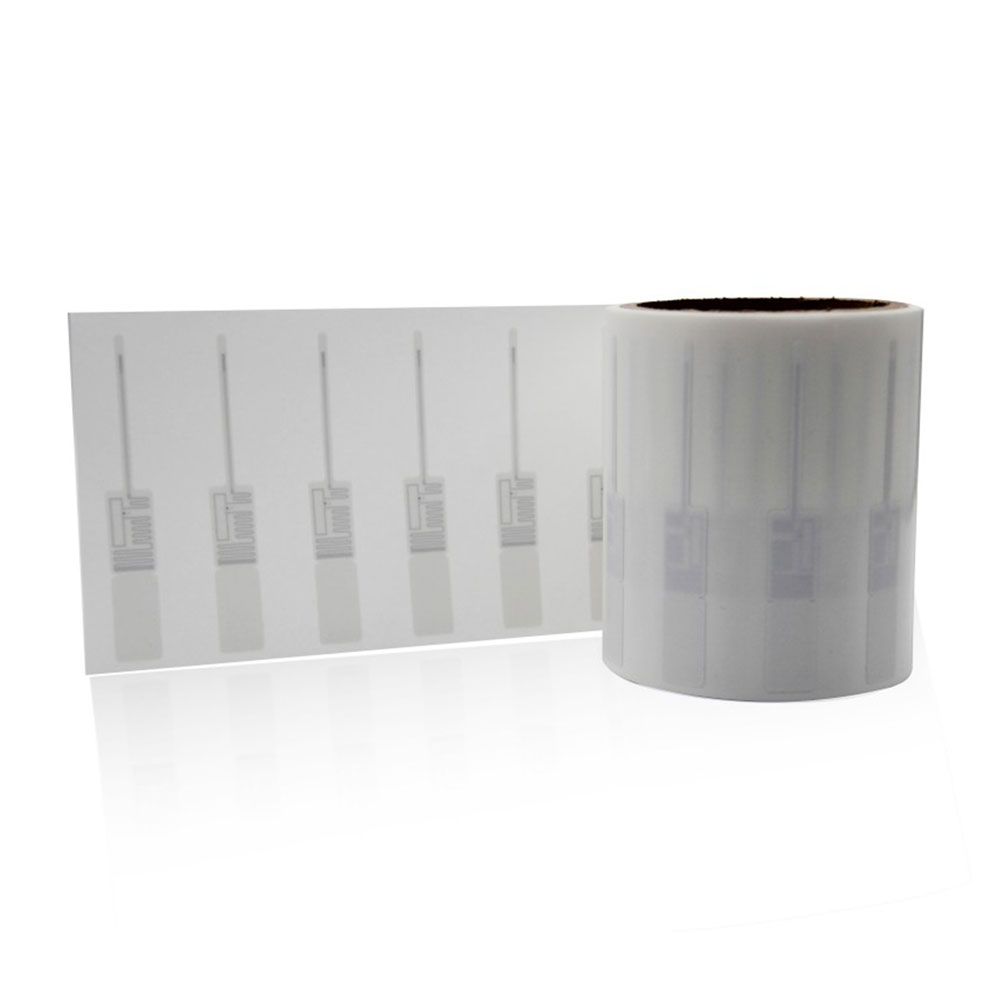

RFID Jewelry Label

RFID jewelry tag is a special tag that combines radio frequency identification technology. It provides an efficient and safe management method for the jewelry industry. These tags have built-in microchips and antennas that can store important information about the jewelry, such as material, weight, size, price, etc. Through RFID readers, jewelers can quickly conduct inventory counts and monitor the flow of jewelry in real time, thereby improving management efficiency and accuracy. In the jewelry industry, the application of RFID technology not only improves operational efficiency, but also enhances the safety and professionalism of jewelry brands, becoming an indispensable management tool for jewelry retail and wholesalers.

Advisory

Share the Website to

Technical Specification

Model No	RFID Jewelry Label
Chip	NXP/U Code 9XE
Base material	PET
Antenna manufacturing method	Etched Aluminum (9μm)+PET(50μm) CN0292
Standards compliant	ISO/IEC18000-6C EPC Class1 Gen2
Frequency	860-960MHZ
IC Life	100，000 Programming cycles, 10years data retention
Read range	6-9M
ESD Voltage	±2kV Human Body Mode
Temperature/Humidity for Label Attach	18℃~ 40℃/20%~80%RH
Temperature/Humidity after Label Attached to the Products	-20℃~ 50℃/ 20%~80%RH

Download

RFID Jewelry Label.pdf 409KB 2026-1-31 15:23:53: Download

RFID Jewelry Label

RFID Jewelry Label.pdf
