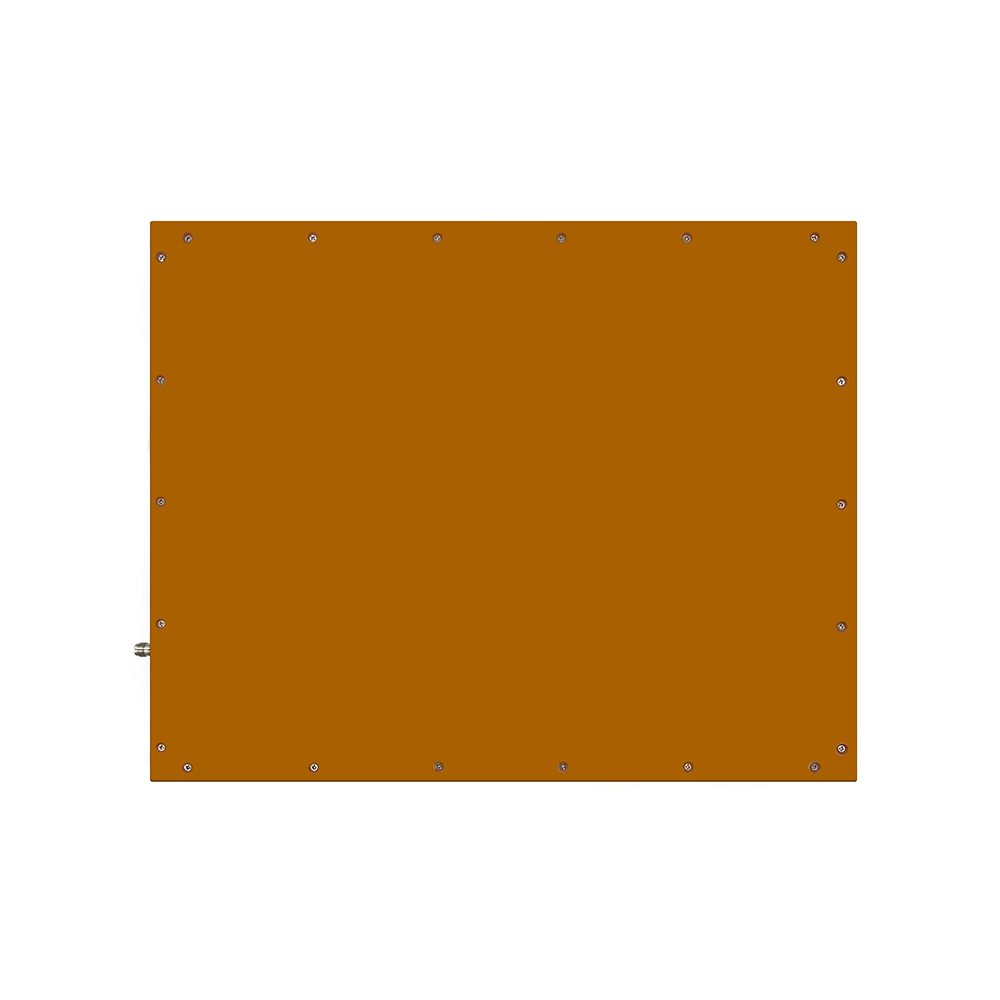

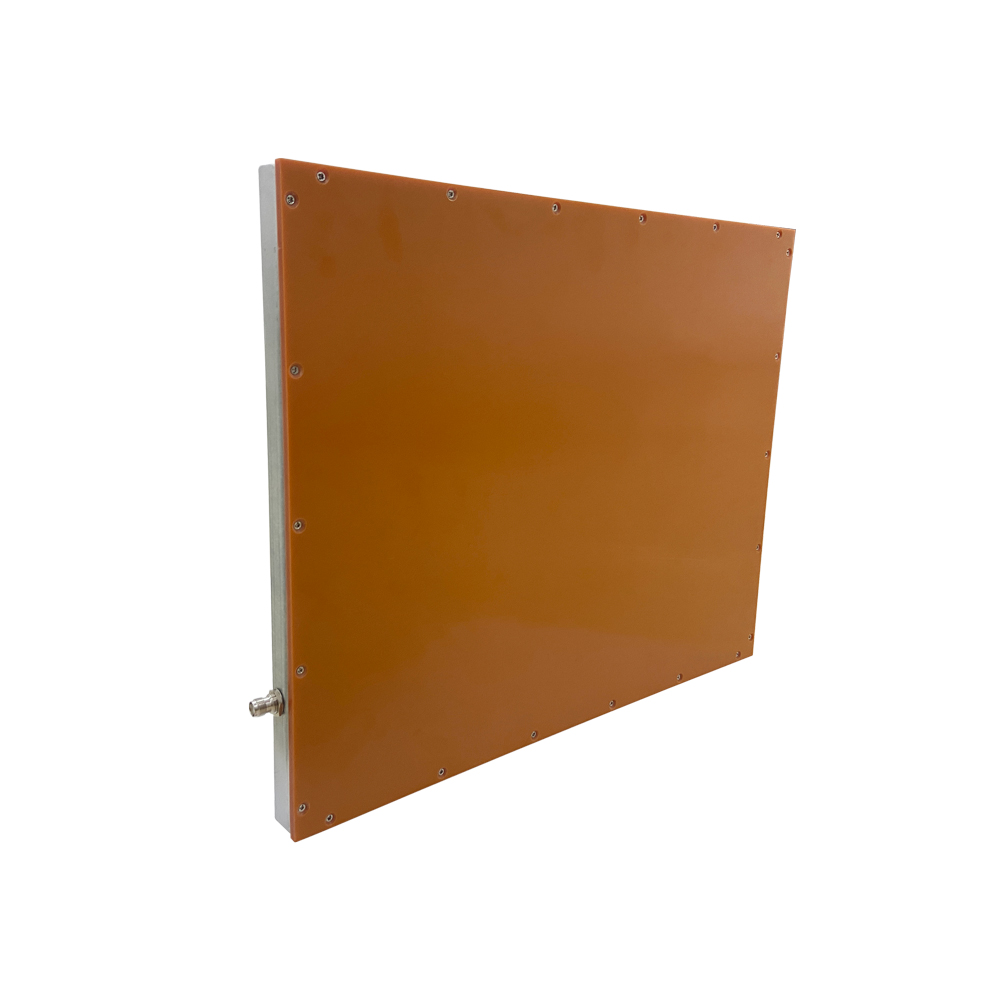

RFID Concealed Antenna LFM-DM01

The RFID concealed antenna is a high-performance RFID tag detection equipment newly designed and launched by Lifangmei. It is installed under the floor, which has excellent detection performance and anti-interference ability, strong concealment, and is suitable for specific scenarios.

Advisory

Share the Website to

Technical Specification

Model	LFM-DM01
Detection range	Height: 1.8 meters Width: 1.2 meters
Frequency range	902~928MHz
Gain	10.5dBi
Half power angle	Hor:36° Ver:70°
Standing wave ratio	≤1.3
Impedance	50Ω
Polarization method	Circular polarization
Maximum power	50W
Antenna size	50040030mm
N.W.	5.95kg

Download

LFM-DM01 237KB 2026-6-12 16:51:58: Download
