LFM-DZ001

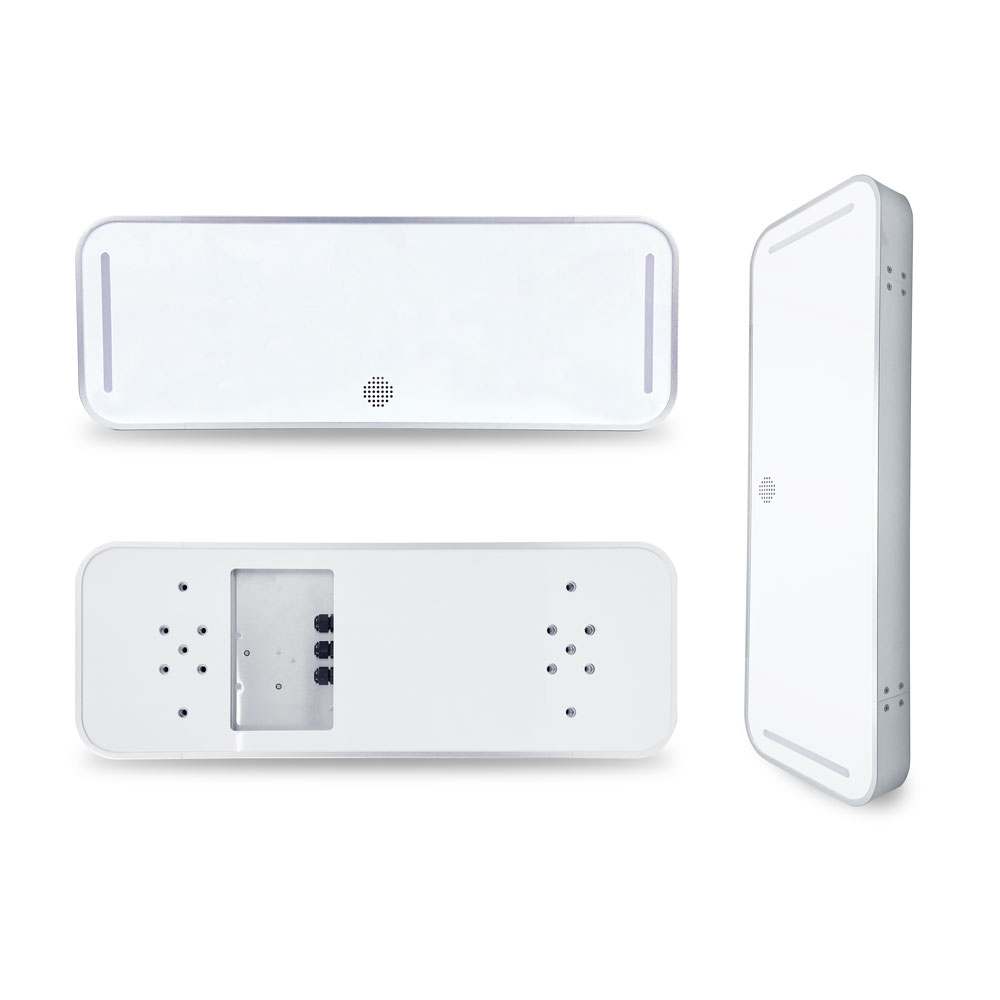

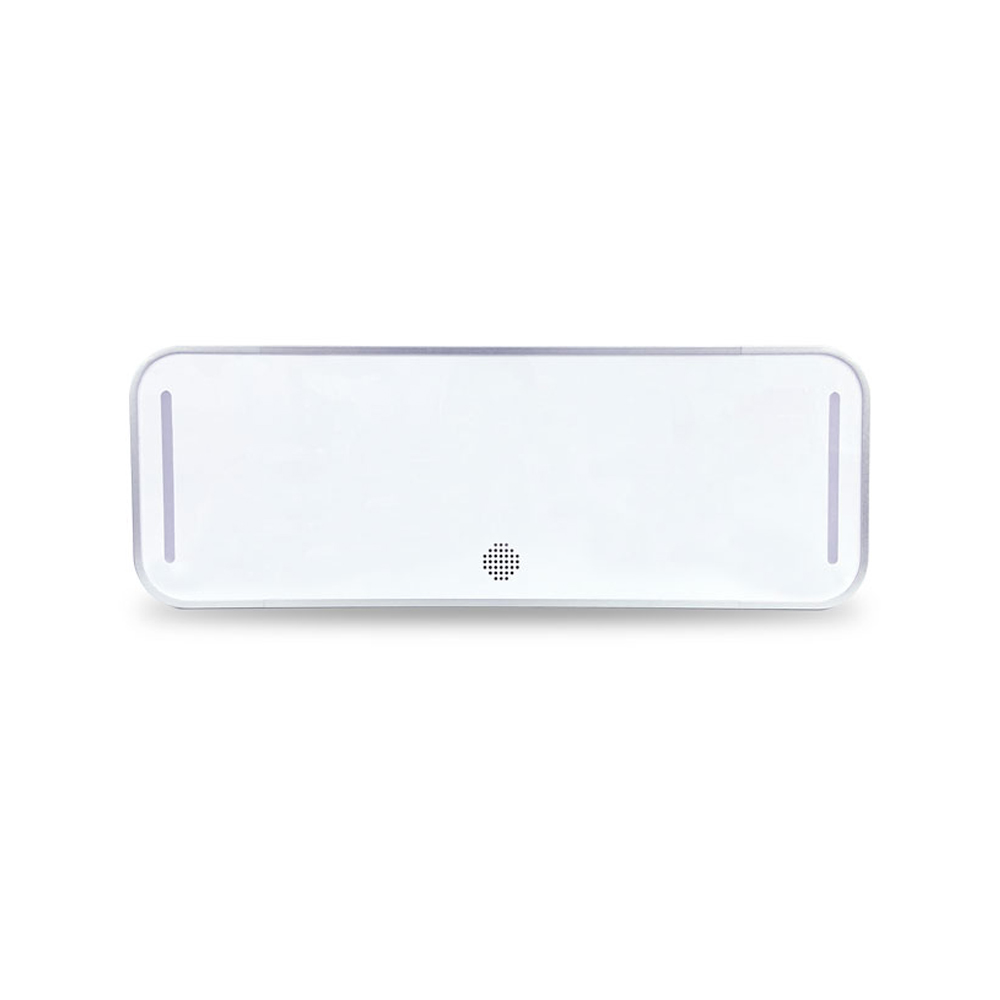

LFM-DZ001 is a high-performance overhead UHF RFID antenna newly developed by Lifangmei. It supports the ISO18000-6C protocol and has an optional output power of 10dBm~30dBm. It has strong multi-tag recognition capabilities and strong anti-interference ability, good scalability and fashionable appearance, especially suitable for shopping malls, clothing stores, luggage stores, shoes and hats store.
Technical Specification
|
Model No |
LFM-DZ001 |
|
Communication Interface |
RJ45(10M/100M),RS232(9600-230400bps),RS485(19200-230400bps） |
|
Optional |
WIFI(2.4G),4G(All Netcom),POE（802.3af/802.3at） |
|
Protocol |
Modbus,HID,HTTP,HTTPS,MQTT,TCP |
|
Indicator light |
Power indicator light (green light), status indicator light (red light) |
|
GPIO |
4 channels of input, 8 channels of strong drive output (each channel can draw current up to 250mA) |
|
L*W*H |
200mm X 575mm X 45mm |
Download
-
LFM-DZ001.pdf
394KB
2026-1-31 15:12:18
- Download
