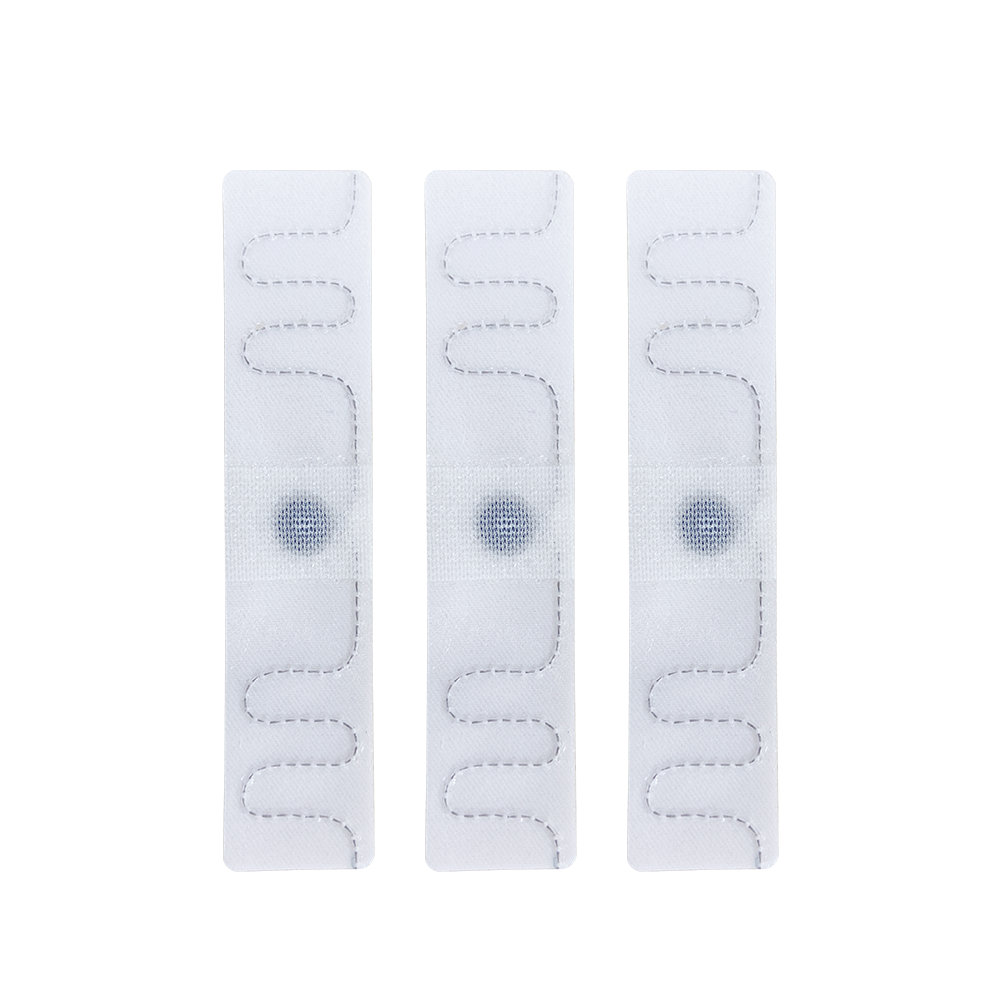

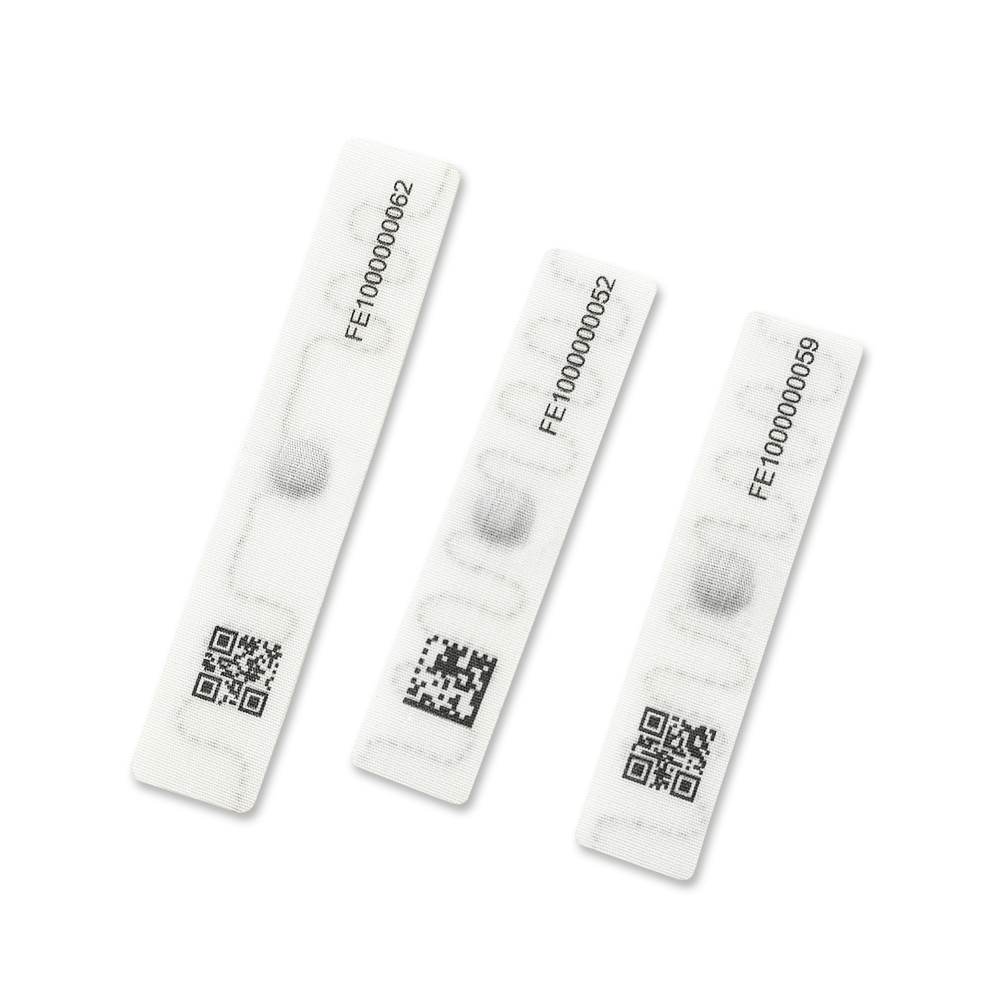

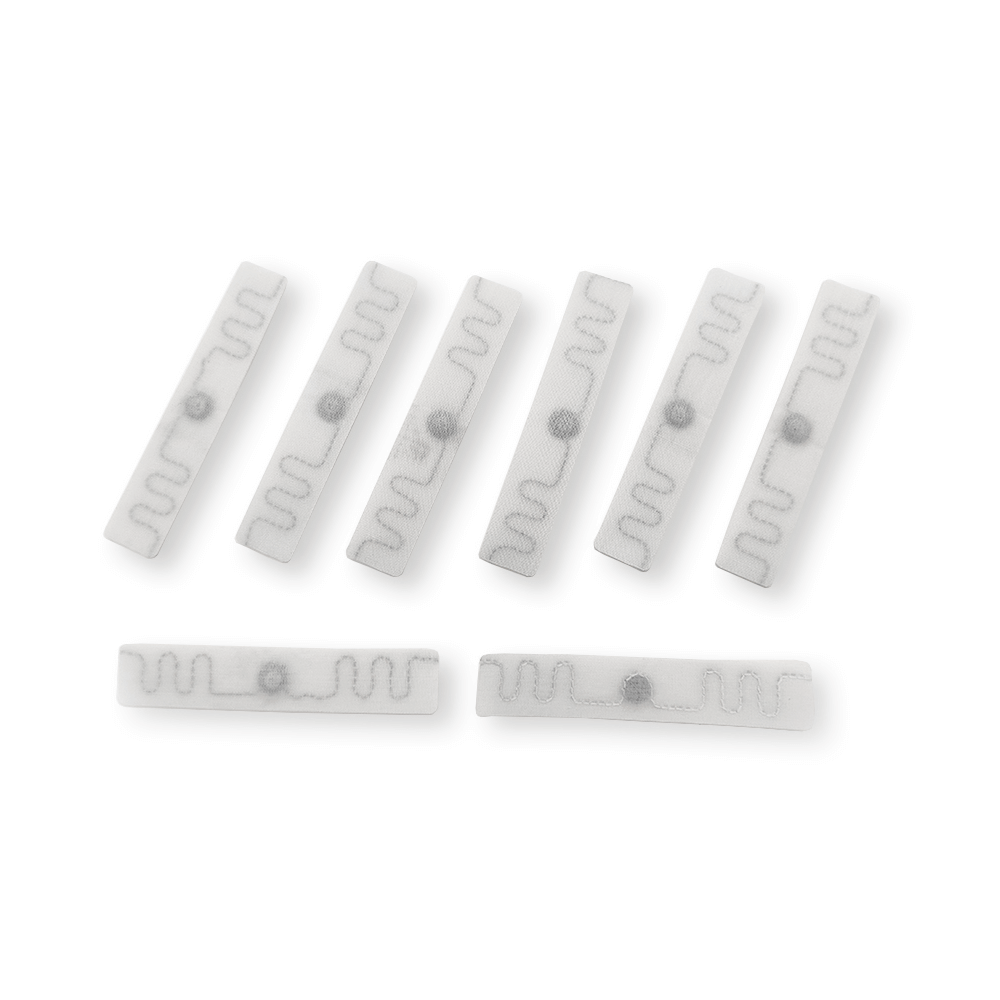

RFID Washing Label

Flexible washing label, especially suitable for clothing and linen washing, it is installed on the linen, it can withstand 180 degrees of high temperature ironing, resistant to more than 200 linen washing. After the performance consistency test before the label is delivered, and the EPC and User area write test, the factory label has excellent reliability and performance Tropism.

Advisory

Share the Website to

Technical Specification

Model No	RFID Washing Label
Air protocol	EPC Class1 Gen2; ISO18000-6C
Operating frequency	860-960MHZ (frequency can be customized according to the application)
Chip type	U CODE 8
Chip storage	EPC 128 bitsTID 96 bits
TID	TID 96-bit, TID number is globally unique and cannot be modified
Read and write performance	Readable and writable (customers can repeat the content into the chip 100,000 times)
Data preservation	Ten years
Product use time	2 years or more than 200 washes
Product application surface materials	Flexible textile
Product weight	0.65G/PCS
Package	Single shipment, 100PCS/ bag
Installation mode	End sewing
Product color	White（other colors can be customized）
Remark	Applicable to European and American frequencies
