RFID-DZ002

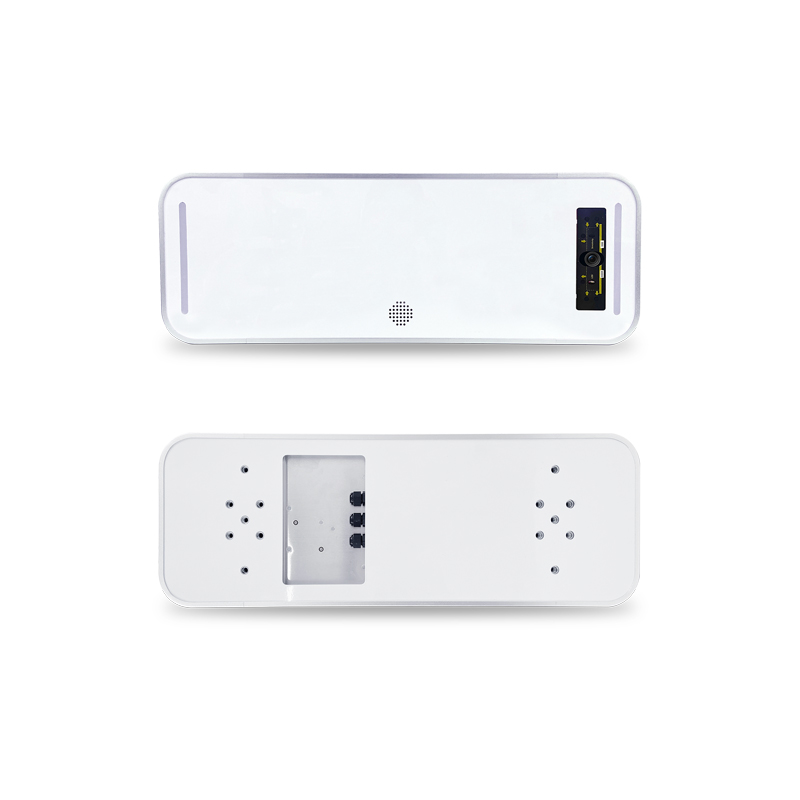

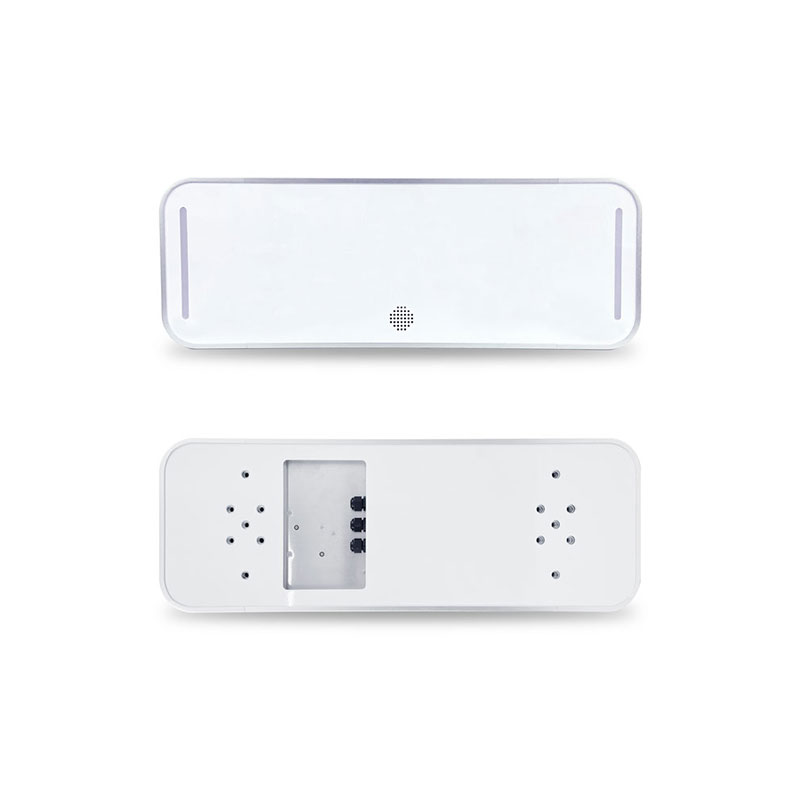

LFM-DZ002 is a high-performance overhead UHF RFID antenna newly developed by Lifangmei, which detects by AI camera. It supports the ISO18000-6C protocol and has an optional output power of 10dBm~30dBm. It has strong multi-tag recognition capabilities and strong anti-interference ability, good scalability and fashionable appearance, especially suitable for shopping malls, clothing stores, luggage stores, shoes and hats store.

Advisory

Share the Website to

Technical Specification

Model No	LFM-DZ002
Communication Interface	RJ45(10M/100M),RS232(9600-230400bps),RS485(19200-230400bps）
Optional	WIFI(2.4G),4G(All Netcom),POE（802.3af/802.3at）
Protocol	Modbus,HID,HTTP,HTTPS,MQTT,TCP
Indicator light	Power indicator light (green light), status indicator light (red light)
GPIO	4 channels of input, 8 channels of strong drive output (each channel can draw current up to 250mA)
Detection Function	Humanoid Detection
Camera Pixel	HD 1080P
Viewing Angle Adjustment	±20°
LWH	200mm X 575mm X 45mm

Download

LFM-DZ002.pdf 396KB 2026-1-31 15:09:59: Download
