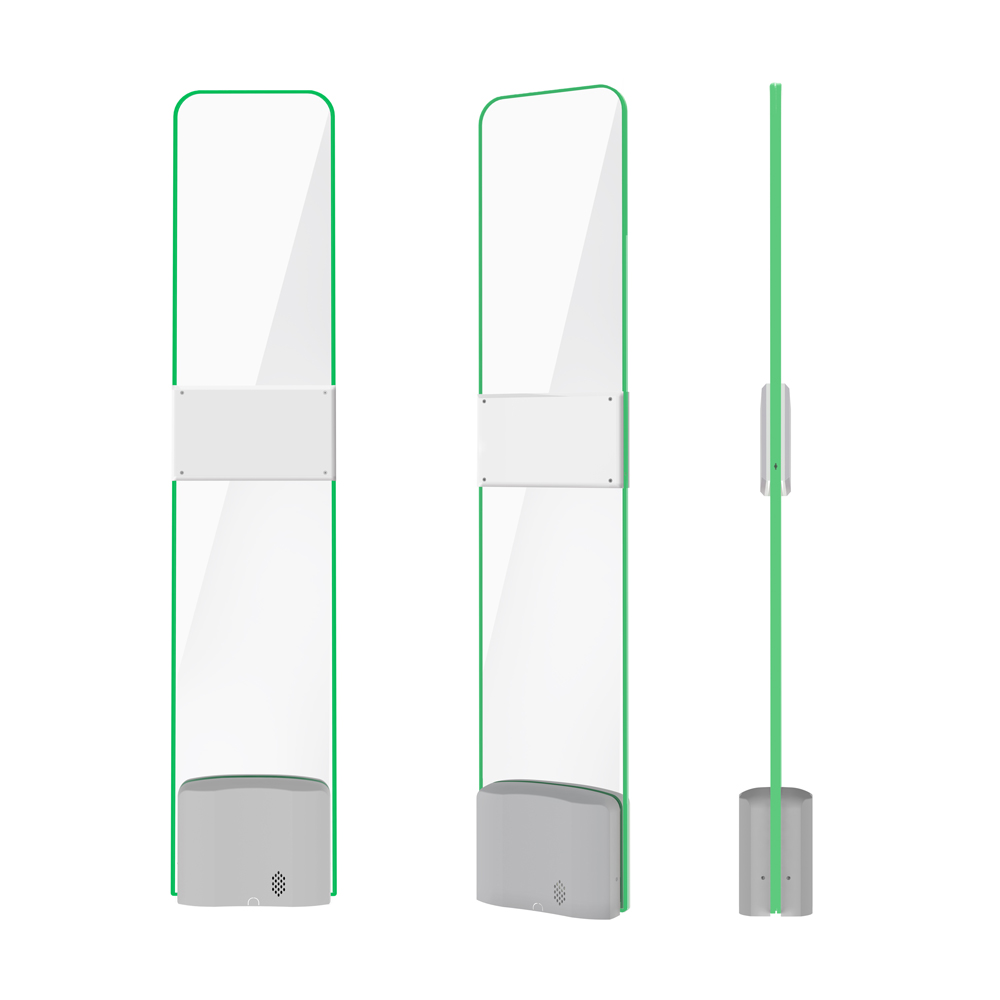

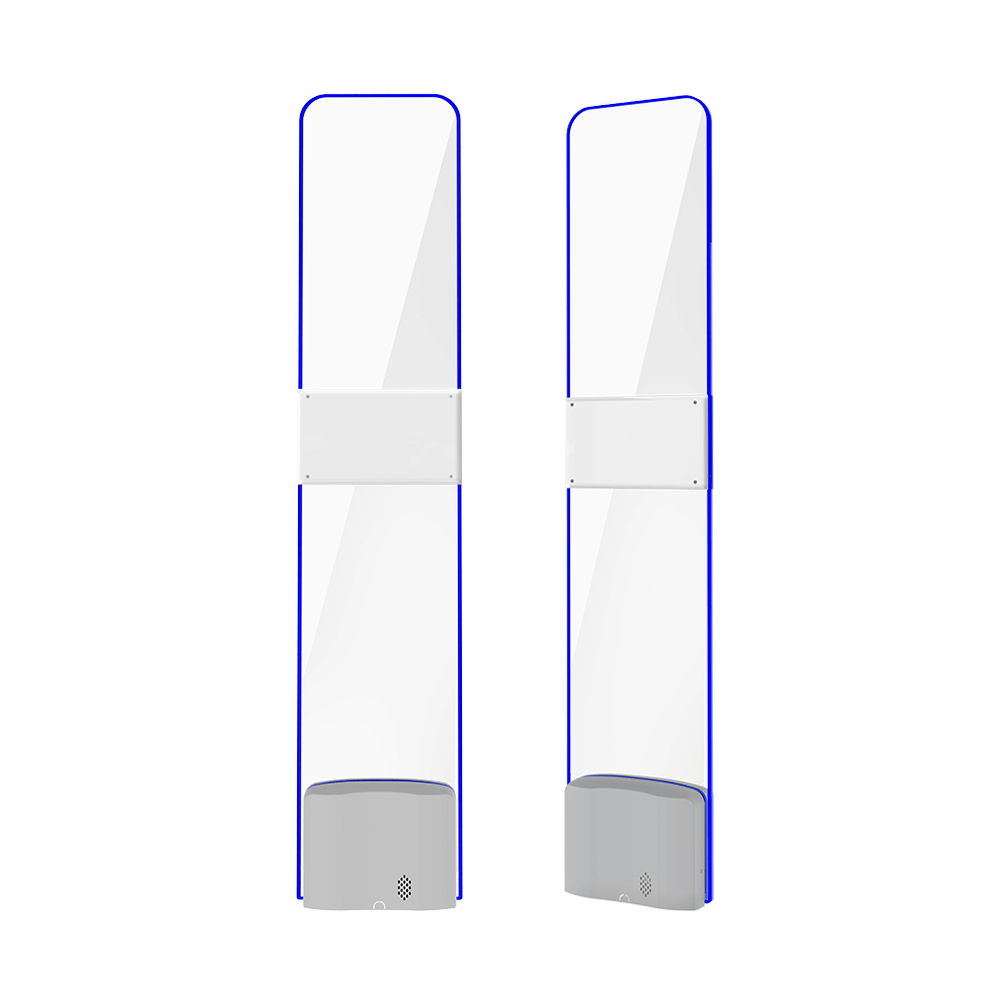

UHF-261
Lifangmei UHF RFID system achieve rapid and batch identification with RFID tags based on the new generation Impinj E710 chip. And this RFID system is integrated with sound and light alarm, which has unique LED light for standby blue, traffic green and alarm red.
Technical Specification
Lifangmei UHF RFID system achieve rapid and batch identification with RFID tags based on the new generation Impinj E710 chip. And this RFID system is integrated with sound and light alarm, which has unique LED light for standby blue, traffic green and alarm red.
Technical Specification
| Model No | UHF-261 |
| Antenna Color |
Frame: Transparent Base cover: Gray |
| Dimension | 1505*300*130mm |
| Material |
Frame: Acrylic Base cover: ABS |
| Communication Protocol |
EPC global C1G2/ISO 18000-6C
Chinese Standard GB/T29768-2013 (Expandable support)
|
| Chip | Impinj E710 |
| Supported Frequency Bands |
North America: 902-928Mhz FCC (NA, SA)
Europe: 865-868Mhz (ETSI)
China: 920-925Mhz (CMIIT)
All frequency bands: 860-960Mhz (OPEN)
|
| Antenna Connection | 4 SMA interfaces |
| Supply Voltage | DC 5V±5% |
| Communication Interface | RS232/485; WIFI; Ethernet; Bluetooth |
Download
-
UHF-261 Catalogue.pdf
1.49MB
2026-1-31 14:40:58
